Sinolift ND series intelligent Single-Arm compact electric reel stacker for film & paper rolls

Name: Sinolift ND series intelligent SingleArm compact electric reel stacker for film amp paper rolls
Brand: SINOLIFT
Price: 1 USD

China Sinolift ND series intelligent Single-Arm compact electric reel stacker for film & paper rolls wholesale

Brand Name : SINOLIFT

Model Number : ND95C

Certification : CE

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 1000 sets/mouth

Delivery Time : 15 days

Packaging Details : Sandard Export Package

Product name : Sinolift ND series intelligent Single-Arm compact electric reel stacker for film & paper rolls

Driving style : Pedestrian

Rated Load : 600kg

Net weight : 195kg

Warranty : 1 year

After service : on-line service,free spare parts

Contact Now

Product Name

Sinolift ND series intelligent Single-Arm compact electric reel stacker for film & paper rolls

The Intelligent Single-Arm Mandrel Stacker — a compact and lightweight electric reel stacker designed for lithium battery electrode rolls, film rolls, and paper rolls. Featuring a maintenance-free battery, high-transparency PC dust-proof cover, high-quality hydraulic cylinder, and precise electric lifting up to 1.6m. Easy one-person handling, efficient push-pull operation, and customizable arm sizes for versatile applications in narrow spaces.

Product Specifications

Model		ND95C	ND95B	ND95D
Drive Type		Hydraulic	Hydraulic	Hydraulic
Rated Load	kg	600	600	600
Load Center	mm	400	400	400
Minimum Height (Boom Center)	mm	290	290	290
Maximum Height (Boom Center)	mm	1600	1600	1600
Overall Length	mm	1120	1120	1120
Overall Width	mm	660	750	691
Overall Height	mm	1960	1960	1960
Leg Outside Width	mm	470	620	500
Boom Specification	mm	Ø132-650	Ø132-650	Ø132-650
Front Wheel Specification	mm	Ø80X60-2	Ø80X60-2	Ø80X60-2
Rear Wheel Specification	mm	Ø150X50-2	Ø150X50-2	Ø150X50-2
Lifting Motor	kw	DC12V/1.0	DC12V/1.0	DC12V/1.0
Driving Motor	kw	DC12/1.0	DC12/1.0	DC12/1.0
Power Supply Specification	V/Ah	DC12/75AH	DC12/75AH	DC12/75AH
Minimum Turning Radius	mm	1016	1016	1016
Noise Level	Db	≤70	≤70	≤70
Steering Type		Mechanical	Mechanical	Mechanical
Braking Mode		Swivel Caster Brake	Swivel Caster Brake	Swivel Caster Brake
Net Weight	kg	195	205	205

Sinolift ND series intelligent Single-Arm compact electric reel stacker for film & paper rolls

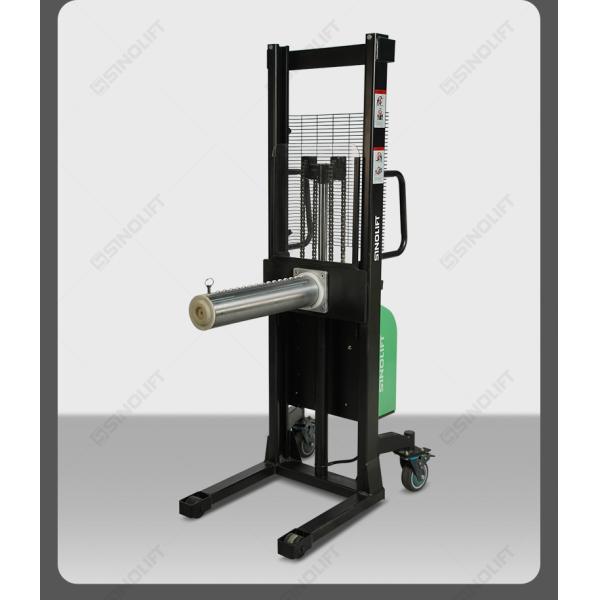

Sinolift ND series intelligent Single-Arm compact electric reel stacker for film & paper rolls Images
